Ob chav Sided PVC Glazing daim kab xev

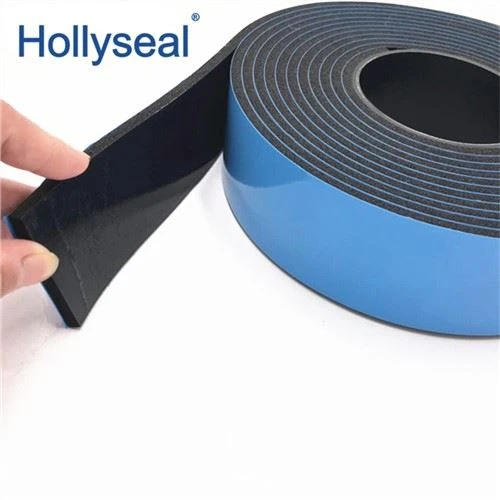

Hollyseal® PVC ua npuas ncauj glazing daim kab xev coated ob sab nrog acrylic nplaum. Nws yog tsim los siv nyob rau hauv cov txheej txheem spacer systems thiab muaj ib tug kaw cell qauv tso cai rau kev kho ntawm cov qauv silicones ntawm tag nrho cov sab.
Hollyseal® PVC ua npuas ncauj glazing daim kab xev feem ntau yog siv rau hauv cov ntaub thaiv phab ntsa thiab glazing thiab yog ib qho kev lag luam zoo heev rau kev siv nyiaj ntau ntawm cov urethanes.
Qhov ceev: 35 0 ± 50kg / m3; Thickness: 0.5-16mm.
Foam tapes tuaj yeem muab rau hauv koj tus kheej hom.

Khoom piav qhia:

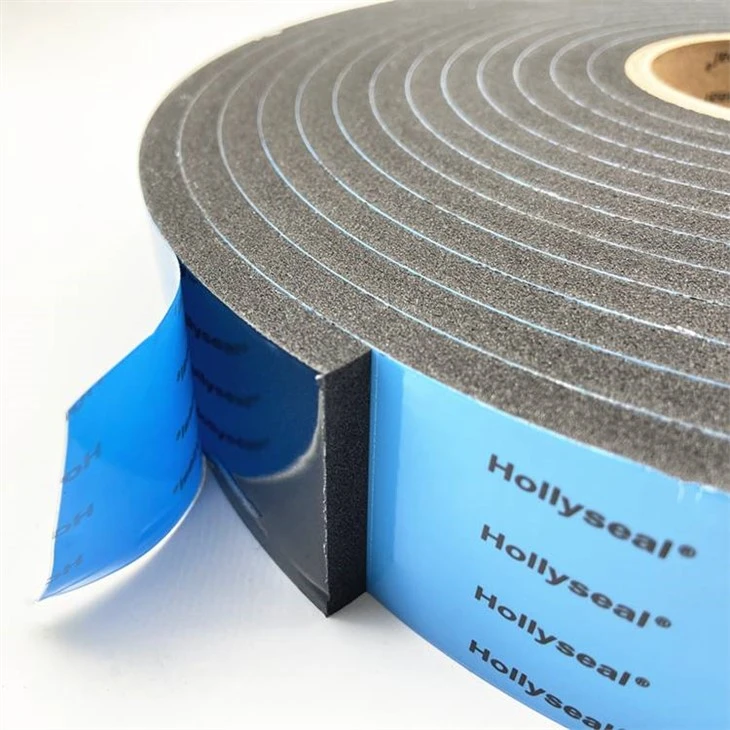

Hollyseal ®double sided PVC glazing cov kab xev yog ua kom muaj cov kab xev sib xyaw ntawm ob sab cov ntsaws ruaj ruaj.

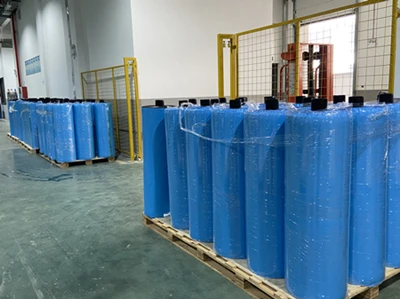

High Density Closed Cell PVC Foam

Nta:

● Thicknesses ntawm 0.5mm txog 16mm

● High shear, siab tev, siab nplaum loj

● PVC ua npuas ncauj glazing daim kab xev nrog ib tug du nto tiav

● Kaw-cell foam-zoo plua plav thiab noo noo foob

● Zoo heev tiv taus huab cua, oxidation thiab ultraviolet lub teeb

● Zoo rau aluminium thiab ntoo qhov rais thiab lwm yam kev siv nrog lub hnab ntim glazing ruaj khov heev

initpintu_

Khoom qauv:

● Tso tawm liner▕ Polypropylene liner

● Adhesive▕ Acrylic nplaum

● Ua npuas ncauj▕ PVC, dub

8bdd02a59940593e0d51ba604c92c01

Tsis tu ncua Specification:

● 1.6mm * 6mm * 33m

3.2 hli * 9mm * 15.2m

4.8mm * 9mm * 15.2m

4.8mm * 12mm * 15.2m

6.4mm * 6mm * 15.2m

6.4 hli * 9mm * 15.2m

6.4mm * 12mm * 15.2m

9.5 hli * 9mm * 7.6m

● 12.7mm * 18mm * 7.6m

Technical Information:

Qhov ntom	350 ± 50 kg / m³
Ntug 00 Hardness	80 ± 10 degree
Tensile zog	Ntau dua lossis sib npaug li 800kPa
Force Compress	Ntau tshaj lossis sib npaug li 50kPa
Elongation	Ntau dua lossis sib npaug li 70 feem pua
180 degree Peel Strength	0.82N/mm
30 feem pua Compression set	Tsawg dua lossis sib npaug li 7 feem pua
Flamability	UL94 HBF/HF-1/V-0 TIAB SA 302 (Muaj nyob rau hauv customized)
